Dialogic PowerMedia XMS
Real-time communications software media server for today & tomorrow


Dialogic PowerMedia XMS

Dialogic Products
Media Server Software
Dialogic PowerMedia XMS
#pwrmed-xms
Get a Quote!

Click here to jump to more pricing!

Overview:

Dialogic’s PowerMedia XMS is a highly scalable, software-only media server that enables standards-based, realtime multimedia communications solutions for IMS, MRF, Enterprise, and WebRTC applications on premise or in the cloud. Built on 15+ years of software media processing experience, PowerMedia XMS is trusted by world-class service providers and large enterprises to power millions of rich media sessions.

With an extensive list of successful implementations that include MRF for VoLTE, carrier hosted contact centers, enterprise communications, voice messaging and “mission critical” next-generation 911 services, PowerMedia XMS has proven to be a key building block to new and innovative applications. When deployed with the optional Dialogic PowerMedia Media Resource Broker (MRB), PowerMedia XMS scales to meet growing service-provider and business requirements.

PowerMedia XMS allows for rapid integration and development through open, and industry standard APIs, including MSML, VXML, NetAnn, and JSR 309, plus a Dialogic RESTful API. As a 100% software solution with Network Function Virtualization (NFV), PowerMedia XMS allows for installation on commercial off-the-shelf (COTS) servers, virtual machines, or public & private clouds.

PowerMedia XMS supports an extensive range of real-time media processing needs, including:

  • Multi-party conferencing – low-latency mixing of audio and video, including HD voice and high-resolution video up to HD 720p, and Multi-point Control Unit (MCU) for group communications with the ability to adapt individual streams to optimize the experience for each user
  • Transcoding – any-to-any audio and video codec conversion for a wide-range of fixed, wireless, and web-oriented codecs, including transrating and transizing for video
  • Media interworking – conversion of underlying transport protocols and encryption interworking, including support for a WebRTC Media Gateway
  • Recording – flexible centralized audio and video recording for mixed conferences, or individual streams
  • Stream processing – analyze, insert, and modify the audio or video stream for speech recognition, DTMF, video overlays, and much more
  • Person-to-Machine – connect to computer-controlled interfaces, not just other people, for applications such as Interactive Voice (and Video) Response (IVR and IVVR) systems, and speech interaction

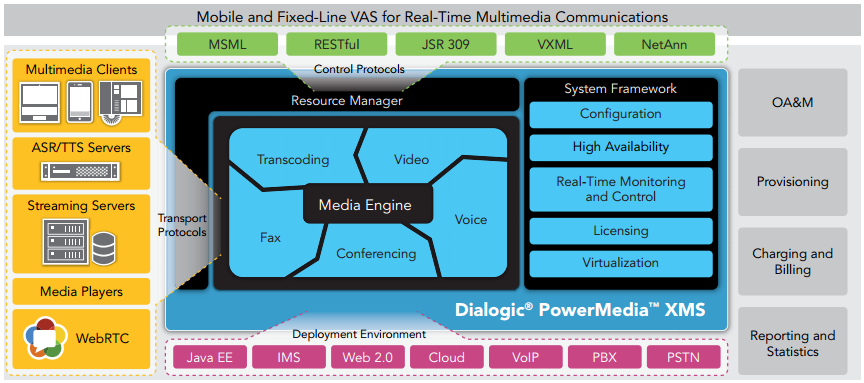

Dialogic PowerMedia XMS: Interfaces, Functions, and Deployment Environments

Dialogic PowerMedia XMS: Interfaces, Functions, and Deployment Environments

Features and Benefits:


Features Benefits
Highly scalable, software media server with advanced multimedia processing functionality with an optional PowerMedia Media Resource Broker (MRB) Facilitates the development and deployment of rich communication applications and services across Web, VoIP/SIP, Mobile and PSTN networks with a wide range of connected endpoints. By offloading difficult media handling requirements to PowerMedia XMS, service providers, and developers are able to focus on unique aspects of their application without the burden and cost associated with developing highly-scalable media expertise in-house.
Standards-compliant IMS MRF with full Voice over LTE (IR.92) and Video over LTE (IR.94) support Conforming to the 3GPP IMS architectural specifications, PowerMedia XMS can be deployed as a Media Resource Function (MRF), providing key media processing capabilities that may be required by IMS-based services such as VoLTE and RCS. Additionally, its conformance to IMS specifications promotes compatibility between legacy telephony networks and evolving IP telecommunication standards.
Robust HD audio and video media support with IETF, 3GPP and W3C WebRTC codecs As new codecs are being introduced into the market, PowerMedia XMS can act as a transcoding gateway, providing interworking of a wide variety of audio and video codecs. PowerMedia XMS’s software nature also means that new codec support can be rapidly added without changing physical DSPs or necessitating complicated firmware upgrades.
Support for Commercial-Off-The-Shelf (COTS), virtualization, and Network Function Virtualization (NFV) deployment models Reduces both OPEX and CAPEX by utilizing existing datacenter infrastructure and cloud services for deployment of dynamically scalable communication solutions.
Media control through open, and industry standards based API’s Energizes service provider and communication developers by leveraging industry-standard programmable APIs to rapidly add sophisticated media handling capabilities to their applications.
Web-based GUI and HTTP RESTful Management interface for media server management, control and monitoring Intuitive, yet powerful operator console can reduce OPEX when deploying solutions by enabling the quick resolution of operation issues. The HTTP RESTful web management interface provides seamless integration with existing infrastructure for real-time monitoring, alarms, logging, and tracing.
Scalable licensing from ten ports to thousands of ports per server The simple, flexible, and scalable licensing model allows paying only for the functionality your application needs and only when you need it. Applications can start with licenses for basic audio services and can later add HD voice or video capabilities when required by the application, thus providing significant CAPEX savings opportunities by allowing solutions to be scaled easily by software upgrade as demand grows.

Solutions:

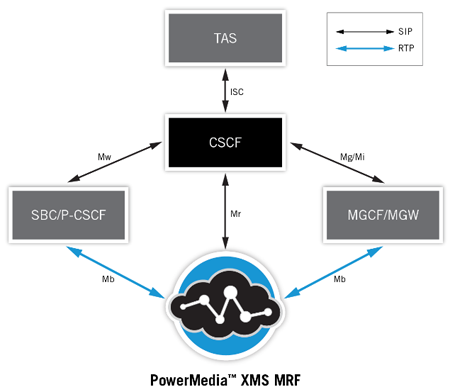

MS Media Resource Function (MRF)

IMS Media Resource Function (MRF)

  • 3GPP and GSMA compliance for seamless insertion into existing IMS network architectures
  • VoLTE and RCS compliant, including full IR.94 video support
  • Completely software-based and virtualization support for NFV initiatives
  • Optional Media Resource Broker (MRB) support for seamless scalability without application re-writes and network reconfiguration
  • Common use cases include conferencing, IVR, video voicemail, and WebRTC extension

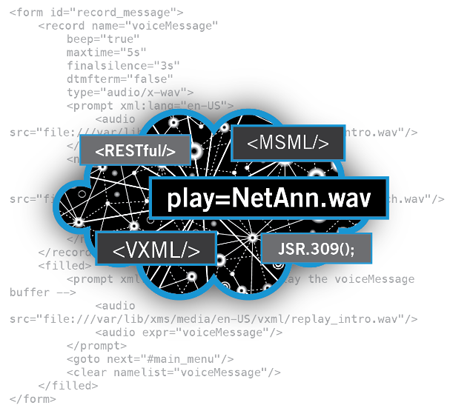

Telecom Application Developers

Telecom Application Developers

  • API’s for announcements, recording, conferencing, transcoding, DTMF, call progress analysis, and much, much more
  • Many standardized media server API’s and control interfaces –MSML, VXML, NETANN, and JSR.309 for Java J2EE
  • Comprehensive RESTful interface
  • JavaScript client for WebRTC
  • First and third-party call control models for ultimate flexibility
  • Sample applications and free training videos

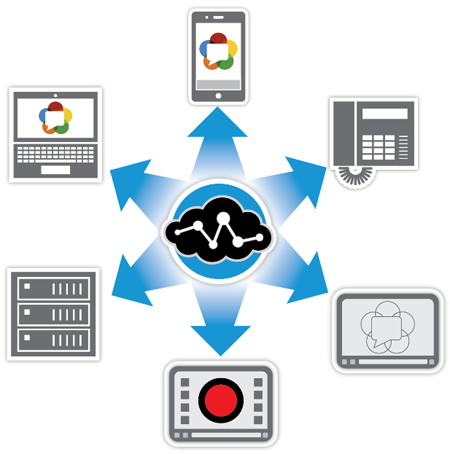

WebRTC

WebRTC

  • Award winning conferencing, recording, and transcoding with WebRTC clients
  • Full audio and video WebRTC codec support
  • JavaScript client library for rapid development and client support
  • Easy media plane interworking with existing VoIP systems
  • Fully virtualized and cloud-ready for easy integration into web-based environments
  • Works with standard media server control interfaces or powerful RESTful API

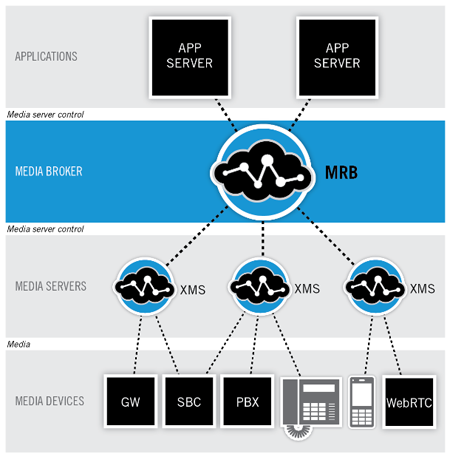

Media Server Load Balancing

Media Server Load Balancing

  • PowerMedia Media Resource Broker (MRB) is a software load balancer for media servers
  • Lower costs and improve utilization by consolidating media servers into a single resource pool
  • Easy to add to existing application servers without changing interfaces or adding MRB awareness
  • Adds high-availability and geographic redundancy
  • Media server affinity routes callers to the right media server during hand-overs
  • IETF RFC6917 and 3GPP IMS standards compliant



Video Conferencing & Recording

Video Conferencing & Recording

  • Many standardized media server API’s and control interfaces –MSML, VXML, NETANN, and JSR.309 for Java J2EE
  • Comprehensive RESTful interface
  • First and third-party call control models for ultimate flexibility
  • Sample applications and free training videos

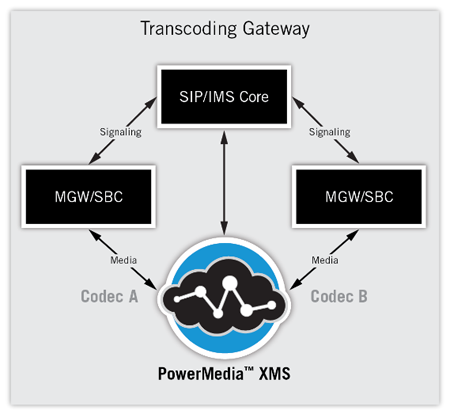

Software Transcoding Gateway

Software Transcoding Gateway

  • Broad audio and video codec support including fixed, mobile, and web-based codecs
  • Flexible network implementation for Network Function Virtualization (NFV) and cloud-oriented networks
  • Software-design allows for more rapid incorporation of new codecs
  • Integrate directly into a SIP or IMS core or use to complement an existing gateway or SBC

Specifications:


Technical Specifications
Session Capacity Typical media sessions per server (specific per server results will depend on a variety of factors, including but not limited to deployment conditions, configurations, and equipment):

Audio — Up to 2000 sessions of G.711 or 1000 sessions with full-duplex (RTP-RTP) transcoding
Video — Up to 450 unidirectional sessions (also includes audio transcoding), depending on system capacity, codec, resolution, frame rate, etc.

When multiple servers are deployed with PowerMedia MRB, total scaling can achieve upwards of 50,000 audio sessions and 2,000 video sessions.
Signaling, Protocol, and Control Interfaces
Control Protocols and Specification Compatibility
  • SIP (RFC3261)
  • SIP PreConditions (RFC3312, RFC4032)
  • SIP DNS (RFC3263)
  • GSMA IR.92 for Voice over LTE (VoLTE)
  • GSMA IR.94 for Video over LTE (ViLTE)
  • 3GPP TS23.288 for IMS (Mr/Mr’ and Cr interfaces)
  • WebRTC JavaScript API
  • MSRP for multimedia chat and RCS message services
  • RTSP client support for streaming multimedia content from RTSP servers
  • MRCP v2.0/v1.0 for connection to speech servers for ASR/TTS - see “Third Party MRCP Speech Vendor Capability” below
Media Protocols
  • IPv4, IPv6, and mixed-mode IPv4/IPv6 (Multiple-NIC support)
  • 3GPP Mb (RTP) interface for IMS
  • RTP, RTCP, RTCP-XR, RTCP-HR
  • Secure SRTP: DTLS-SRTP (WebRTC), SDES-SRTP (VoIP)
  • ICE Lite, Trickle ICE
  • HTTP
Media Control Interfaces
  • RESTful API - HTTP-based RESTful web services interface
  • MSML (RFC5707) – SIP with XML-based Media Server Markup Language
  • JSR 309 Connector – industry-standard Java media server control API for multimedia application development
  • VXML v2.1/v2.0 (VXML v3.0 for Video) - W3C industry-standard XML interface for specifying interactive voice dialogs for IVR or speech enabled applications.
  • NetAnn (RFC4240) – Basic Network Media Services with SIP for announcements, dialogues, and simple conferences
Media and Coders
Audio
  • Voice and HD Voice play/record
  • Tone generation/detection (Inband DTMF, RFC2833/RFC4733 including RFC4734/RFC5244 tone events)
  • Call progress analysis (CPA)
  • Positive Voice Detection (PVD) and Positive Answering Machine Detection (PAMD)
Audio Codecs
  • Narrowband codecs: G.711u/a, G.723, G.726, G.729a, G.729b, iLBC, GSM-FR, GSM-EFR, and AMR-NB (including AMR2)
  • Wideband codecs: Opus, G.722 and AMR-WB (G.722.2)
  • Voice activity detection, silence suppression, comfort noise generation
Audio Conferencing
  • N-way (including HD Voice) audio mixing
  • Conference Recording (summed or individual parties)
  • Automatic Gain Control (AGC) Per party gain/volume control
  • Active talker detection
  • DTMF clamping
  • Coach-pupil (whisper) mode
  • Loudest N-party mixing
  • Privileged party mixing
  • Echo cancellation
Video
  • Play/record, including fast forward, rewind, pause, resume Video transcoding, transrating, and transizing Video overlays (text and image overlay with scrolling) Dialogic patented Video Encoder Sharing technology
Video Codecs
  • H.264 Baseline Profile, up to Level 3.1 (HD720p)
  • VP9, up to HD720p
  • VP8, up to HD720p
  • MPEG 4 Simple Profile, up to Level 4 (VGA)
  • H.263, H.263+, H.263++ Baseline Profile, up to CIF
  • Image sizes: HD720p, 4CIF, VGA, CIF, QVGA, QCIF, SQCIF (and custom resolutions)
  • Frame rates: Up to 30 FPS
  • Bit rates: Up to 2Mbps
  • Video Fast Update (VFU): Configurable responses to I-Frame Update requests
  • Fully adaptive video jitter buffer
  • Dialogic patent-pending Packet Loss Concealment (PLC) technology
  • Dialogic patent-pending Dynamic Bitrate Adaptive Encoding technology
  • Dialogic patented Encoding Bitrate Control technology
  • RTCP feedback support (PLI, FIR, REMB, TMMBR, TMMBN, Generic NACK)
Media Handling
  • File operations: HTTP1.1, HTTPS, and/or NFS; RTSP/RTP
  • Audio File Containers: .wav, .pcm, .vox, .aud, .amr,.amb WAV/PCM
  • Codec Formats: 8k lin PCM, 11k lin PCM, 16k lin PCM, 8k alaw PCM, 8k mulaw PCM
  • AMR Codec Formats (RFC 4867): AMR-NB(.amr) and AMR-WB(.amb)
  • Multimedia File Formats: .3gp, .mp4, .mkv, Dialogic .vid/.aud
  • 3GP Container Codec Formats:
    • Video: H.264, MPEG4, H.263
    • Audio: AMR-NB, AMR-WB
  • MP4 Container Codec Formats:
    • Video: H.264
    • Audio: AMR-NB, AMR-WB
  • MVK Container Codec Formats:
    • Video: VP8, H.264
    • Audio: Opus
Fax
  • Fax Tone Detection & Notification
  • Fax Send and Receive:
    • G.711 or T.38 (Up to v.17)
    • RFC 6913 – Indicating Fax with SIP
    • TIFF and PDF file formats
Language Support
Variable content announcement / language phrasing “date”, “digits”, “duration”, “month”, “money”, “number”, “silence”, “time”, “weekday”
Customizable to support virtually any language or dialect Built-in voice files US English, Mandarin Chinese, Spanish are standard; French, German, Japanese, Italian, Greek and others are available upon request
Virtualization & Cloud
Virtualization & Cloud
  • VMWare ESXi 5.x
  • Kernel-based Virtual Machine (KVM)
  • Oracle VM
  • XEN Virtual Machine
  • Rackspace Cloud Servers
  • Amazon Web Services (AWS) 1
System Management
System Management
  • Intuitive Web GUI
  • Real-time monitoring and management via HTTP RESTful control interface
  • Command Line Interface (CLI) Scripting
  • Remotely managed tracing and logging
  • SNMP v2c/v3 for management and traps
  • Call Detail Records (CDR)
  • Active Call Monitoring
  • Audit Logging
Licensing
Licensing
  • Scalable from (10) to thousands of ports per server
  • A time-limited trial license is available for evaluation purposes
  • For more information about development licenses, please contact Dialogic inside sales (insidesales@dialogic.com)
Hardware Support and Minimum System Requirements
Hardware Intel Architecture-based server
Operating System (64-bit OS)
  • CentOS Release 7.0 ISO installation OR
  • RedHat Enterprise Linux 7.0
  • CentOS Release 6.4 (rpm-only)
  • RedHat Enterprise Linux 6.4 (rpm-only)
  • Oracle Enterprise Linux 6.4 (rpm-only)
Processor Intel Dual 56xx or greater
Ethernet Single or Dual 1000Base-TX (RJ-45)
Memory 8 GB RAM minimum
Storage 120 GB HD minimum
Third Party MRCP Speech Vendor Compatibility
Third Party Compatibility
  • Lumenvox (ASR and TTS)
  • Nuance (ASR and TTS)
  • Vestec (ASR)

1 Planned future feature

Documentation:

Download the Dialogic PowerMedia XMS Datasheet (.PDF)
