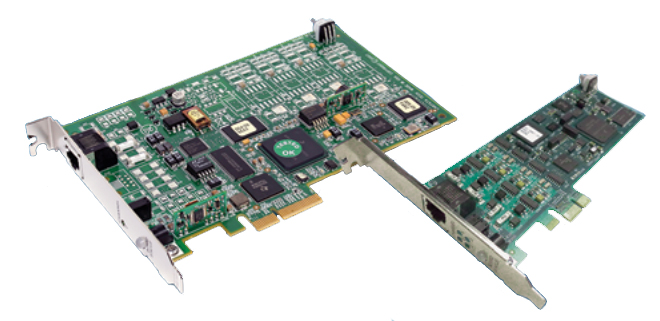

Dialogic Brooktrout TruFax Fax Boards
Up to four channels of dependable fax capabilities for analog and BRI networks

Dialogic Brooktrout TruFax Fax Boards

Dialogic Products

Brooktrout Fax

Dialogic Brooktrout TruFax 200E LP 2 Channel Loop Start, PCI Express TruFax Board; low profile

#901-017-03
Get a Quote!

Dialogic Brooktrout TruFax 200-R PCI Half-size, two-channel Universal PCI fax board with analog loop start interface

#901-004-08
Get a Quote!

Click here to jump to more pricing!

Overview:

The Dialogic Brooktrout TruFax Fax Boards offer small businesses and departmental workgroups dependable network fax capabilities. These intelligent fax boards support a variety of applications, such as fax server and workflow fax, and offer enterprise-level quality and performance to small businesses.

Available in several configurations, Brooktrout TruFax Fax Boards provide up to four (4) channels per board for dedicated send-and-receive channel configurations. If TruFax Fax Boards are configured to send and receive faxes through separate channels, the fax solution can receive faxes in one channel and send faxes from the outbound job queue in another channel.

Table 1 lists the Brooktrout TruFax Fax Board models and some of their features. The BRI ISDN telephony interface can be used in Europe and Japan.

Models	Channels	Interface
TruFax 200 Analog	2	Analog
TruFax 200 BRI	2	BRI ISDN
TruFax 250 BRI	2	BRI ISDN
TruFax 400 BRI	4	BRI ISDN
TruFax 450 BRI	4	BRI ISDN

Features and Benefits:

Features	Benefits
Leverages advanced fax algorithms and provides dedicated fax-processing power	Offers performance and reliability benefits in comparison to Class 1 and Class 2 fax modems and multipurpose telephony adapters
Fax-only modulation to drop all non-T.30 packets	Eliminates possible security issues related to non-T.30 packets
Supports analog and BRI configurations	Allows use in networks around the world
Field-proven T.30 implementation	Helps to deliver faxes consistently and with high reliability
Up to four (4) Brooktrout TruFax Fax Boards can operate concurrently in a single server	Enables easy scalability to address an organization’s growing communications needs
Error Correction Mode (ECM) in TruFax 250 BRI and TruFax 450 BRI models	Allows high first-attempt transmission rates in specific models
Modified Modified Read (MMR) compression algorithm in TruFax 250 BRI and TruFax 450 BRI models	Can reduce transmission time by up to 67% compared to other TruFax models

Specifications:

Technical Specifications	TruFax 200 Analog	TruFax 200 BRI	TruFax 250 BRI	TruFax 400 BRI	TruFax 450 BRI
CPU	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
DSP	One (61 MIPS)	One (61 MIPS)	One (61 MIPS)	One (61 MIPS)	One (61 MIPS)
Network interface	Two( 2) analog loop start	Single Euro BRI	Single Euro BRI	Dual Euro BRI	Dual Euro BRI
Media channels	2	2	2	4	4
Signaling	FCC part 68 and TBR21	ISDN BRI, Euro, Japan	ISDN BRI, Euro, Japan	ISDN BRI, Euro, Japan	ISDN BRI, Euro, Japan
Physical	Half-length 6.6 in. long x 4.376 in. wide Low-profile: 6.6 in. long x 2.53 in. wide	Half-length 6.6 in. long x 4.376 in. wide.
Server bus	PCI half length: 33 MHz PCI 2.2 universal card (3.3/5 V signaling) PCIe half length: x4 PCIe low profile: x1 lane	PCI half length: 33 MHz PCI 2.2 universal card (3.3/5 V signaling) PCIe half length: x4
Power	PCI half length: 5 W, both +3.3 V and 5 V power supply required PCIe half length: Two (2) Channels, 12 W PCIe low profile: Two (2) channels, 5.5 W	PCI half length: 5 W, both +3.3 V and 5 V power supply required PCIe half length: Two (2) Channels, 12 W
System density	Up to four (4) boards per server Note: Dialogic Brooktrout TruFax Fax Boards are not compatible with Dialogic Brooktrout TR1034 Fax Boards within the same chassis.
Environmental	Temperature: 0° to 50°C operational (product dependent) Humidity: 10% to 95% (non-condensing)
Fax modulation	ITU T.30 Group 3 V.17, V.27, V.29 with auto fallback
Image format compression	MH, MR	MH, MR	MH, MR, MMR	MH, MR	MH, MR, MMR
Page format	A4 with onboard image conversion
Error Correction Mode (ECM)	No	No	Yes	No	Yes
Resolution	100 x 200, 200 x 200
Format conversion “on-the-fly”	ASCII, TIFF-F call progress and call control
Dialing and call progress	Onboard DTMF generation and detection Adaptive (SIT detection included), pulse, and DTMF Inbound fax routing capability International call progress and tone detection Programmable tone and cadence detection/generation CED, CNG, v.21 modem detection ANI/DNIS DTMF and MF detection
Operating System Support	Windows, Linux, Solaris
Installation and Configuration	Windows Plug and Play
Environmental Compliance	http://www.dialogic.com/en/company/environmental-policy.aspx
Application Programming Interface	Dialogic Brooktrout Bfv API
Estimated MTBF Per Telcordia Method 1	PCI: 741,750 hours (half-length) PCIe: 671,750 hours (half-length & low-profile)	PCI: 857,300 hours (half-length) PCIe: 815,600 hours (half-length)
Warranty	5-years

Documentation:

Download the Dialogic Brooktrout TruFax Fax Boards Datasheet (.PDF)

Dialogic Products

Brooktrout Fax

Dialogic Brooktrout TruFax 200E LP 2 Channel Loop Start, PCI Express TruFax Board; low profile

#901-017-03
Get a Quote!

Dialogic Brooktrout TruFax 200-R PCI Half-size, two-channel Universal PCI fax board with analog loop start interface

#901-004-08
Get a Quote!

Dialogic Brooktrout TruFax 200E BRI (2B+D) Half-size, two-channel PCI Express fax board with BRI interface

#901-012-07
Get a Quote!

Dialogic Brooktrout TruFax 250E BRI (2B+D) Half-size, two-channel PCI Express fax board with BRI interface and MMR

#901-012-08
Get a Quote!

Dialogic Brooktrout TruFax 400-R BRI (4B+2D) Half-size, four-channel Universal PCI fax board with BRI interface

#901-003-09
Get a Quote!

Dialogic Brooktrout TruFax 400E BRI (4B+2D) Half-size, four-channel PCI Express fax board with BRI interface

#901-012-09
Get a Quote!

Dialogic Brooktrout TruFax 450-R BRI (4B+2D) Half-size, four-channel Universal PCI fax board with BRI interface, MMR, and ECM

#901-003-10
Get a Quote!

Dialogic Brooktrout TruFax 450E BRI (4B+2D) Half-size, four-channel PCI Express fax board with BRI interface, MMR, and ECM

#901-012-10
Get a Quote!
