Dialogic D/240JCT-1T1 and D/300JCT-1E1 Media Boards
Field proven, high performance, media processing for T1/E1 networks

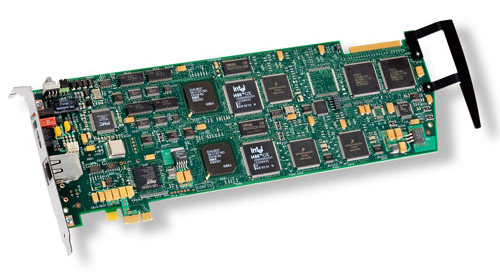

Dialogic D/240JCT-1T1 and D/300JCT-1E1 Combined Media Boards

Dialogic Products

JCT Media Boards

Dialogic D/240JCT-1T1 24-port Digital T1 Media Board, PCIe

#887-531
Get a Quote!

Dialogic D/300JCT-1E1 30-port Digital E1 Media Board, PCIe

#887-533
Get a Quote!

Click here to jump to more pricing!

Overview:

The Dialogic D/240JCT-T1 Media Board is a 24-port Digital T1 PCI Express board and the Dialogic D/300JCT-E1 Media Board is a 30- port Digital E1 PCI Express board. Both of these boards are well-suited for developing advanced communications applications requiring digital network interfaces as well as multimedia resources. These high performance, scalable products support voice, fax, and softwarebased speech recognition processing in a single PCI Express slot.

Dialogic JCT Media Boards – including these models - can be used by developers to provide small- and medium-sized enterprise Computer Telephony (CT) applications that require high-performance voice and fax processing. Among the features and benefits of these boards, and other Dialogic JCT Media Boards, are the following. They have On-board Digital Signal Processor (DSP) based voice processing technology and they are well-suited for server-based CT systems under Windows and Linux. They also provide a powerful platform for creating sophisticated Interactive Voice Response (IVR) applications for the small and medium-sized enterprise market segment. Features such as fax and software-based speech recognition processing enable unified messaging applications. They also provide Automatic Gain Control (AGC), so even a weak telephone signal can be recorded and replayed with clarity.

Features and Benefits:

Features	Benefits
24 or 30 independent voice channels in a single PCI Express H.100 slot	Lower costs while creating larger high-density systems with fewer boards per chassis
Supports G.726 bit exact and GSM coders	Enables implementation of unified messaging applications that meet VPIM standards
Silence-compressed recording	Eliminates silence and preserves hard disk space
Unified call control access through Dialogic Global Call Software interface	Provides worldwide application portability and shortens development time by using the same API for almost any network protocol
Available with PCI Express edge connector	PCI Express form factor compatible with x1 slot (x1 or higher compatible).
Supports DSP-based onboard fax and host-based speech recognition (fax and host-based speech recognition are mutually exclusive)	Maximizes the number of boards in the system

Specifications:

Technical Specifications	D/240JCT-T1	D/300JCT-E1
Number of ports	24	30
Maximum boards per system	16. Number may be limited by factors including application, system performance, and the number of CT Bus loads per board
CT Bus loads per board	1.5	1.5
Maximum CT Bus loads per system	20	20
Digital network interface	Onboard DSX-1 interface	Onboard E-1 interface
Resource sharing bus	H.100 CT Bus	H.100 CT Bus
Control microprocessors	2 Intel486 GX processors	2 Intel486 GX processors
Digital signal processor	Freescale DSP56303 @ 100 MHz, with 128Kx24 private	Freescale DSP56303 @ 100 MHz, with 128Kx24 private
Supported operating systems	Windows; Linux	Windows; Linux
CSP	Yes	No
Signaling	Digital ISDN PRI (CAS)	R2MF
Host Interface
Bus compatibility	Complies with PCI-SIG PCI Express Base Specification, Rev. 1.0a; x1 or higher compatible
Bus speed	2.5 GHz maximum per direction
Shared memory	32 KB to 64 KB page
Interrupt	Legacy INTA emulation shared by Dialogic JCT PCIe Media Boards
I/O ports	None
Physical Dimensions
Dimensions	Standard-height, full-length form factor 12.283 in. (31.200 cm) long 0.79 in. (2.007 cm) wide 3.87 in. (9.830 cm) high (excluding edge connector)
Power Requirements
+3.3 VDC	2.39 A maximum	2.73 A maximum
+12 VDC	0.55 A maximum	0.55 A maximum
Environmental Requirements
Operating temperature	+32°F (0°C) to +122°F (+50°C)
Storage temperature	-4°F (–20°C) to 158°F (+70°C)
Humidity	8% to 80% noncondensing
Telephone Interface
Clock rate	1.544 Mb/s ±32 ppm	2.048 Mb/s ±50 ppm
Level	-	2.048 Mb/s ±32 ppm
Level	3.0 V (nominal)	2.37 V (nominal) for 75 Ohm lines 3.0 V (nominal) for 120 Ohm lines
Pulse width	323.85 ns (nominal)	244 ns (nominal)
Line impedance	100 Ohm ±10%	75 Ohm, unbalanced 120 Ohm, balanced
Other electrical characteristics	Complies with AT&T TR62411 and ANSI T1.403-1989	Complies with ITU-T Rec. G.703
Framing	SF (D3/D4) ESF for ISDN	ITU-T G.704-1988 with CRC4
Line coding	AMI AMI with B7 stuffing B8ZS	HDB3
Clock and data recovery	Complies with AT&T TR62411 and Telcordia TA-TSY-000170	Complies with ITU-T Rec. G.823-1988
Jitter tolerance	Complies with AT&T TR62411 and ANSI T1.403-1989	Complies with ITU-T Rec. G.823, G.737, G.739, G.742-1988
Connectors	RJ-48C	BNC for 75 Ohm lines RJ-48C for 120 Ohm lines
Telephony bus connector	H.100-style 68-pin fine pitch card edge connector	H.100-style 68-pin fine pitch card edge connector
Loopback	Supports switch-selectable local analog loopback and software-selectable local digital loopback
Reliability
Estimated MTBF	Per Telcordia Method 1 PCI Express: 150,000 hours
Springware/JCT Technical Specifications
Facsimile
Fax compatibility	ITU-T G3 compliant (T.4, T.30) ETSI NET/30 compliant
Data rate	14,400 b/s (v.17) send 9600 b/s receive
Variable speed selection	Automatic step-down to 12,000 b/s, 9600 b/s, 7200 b/s, 4800 b/s, and lower
Transmit data modes	Modified Huffman (MH) Modified Read (MR)
Receive data modes	MH, MR
File data formats	Tagged Image File Format-Fax (TIFF-F) for transmit/receive MH and MR
ASCII-to-fax conversion	Host-PC-based conversion Direct transmission of text files Windows fonts supported Page headers generated automatically
Error correction	Detection, reporting, and correction of faulty scan lines
Image widths	1728 pixels 2048 pixels 2432 pixels
Image scaling	Automatic horizontal and vertical scaling between page sizes
Polling modes	Normal Turnaround
Image resolution	Normal (203 pels/in. × 98 lines/in., 203 pels/2.54 cm × 98 lines/2.54 cm) Fine (203 pels/in. × 196 lines/in., 203 pels/2.54 cm × 196 lines/2.54 cm)
Fill minimization	Automatic fill bit insertion and stripping
Audio Signal
Receive range	(T-1) –40 to +2.5 dBm0 nominal, configurable by parameter* (E-1) –43 to +2.5 dBm0 nominal, configurable by parameter*
Automatic gain contro	Application can enable/disable Above –18 dBm0 (T-1) or –21 dBm0 (E-1) results in full-scale recording, configurable by parameter*
Silence detection	–38 dBm0 nominal, software adjustable*
Transmit level (weighted average)	(T-1) –9 dBm0 nominal, configurable by parameter* (E-1) –12.5 dBm0 nominal, configurable by parameter*
Transmit volume control	40 dB adjustment range, with application-definable increments and legal limit cap
Frequency Response
24 kbit/s	300 Hz to 2600 Hz ±3 dB
32 kbit/s	300 Hz to 3400 Hz ±3 dB
48 kbit/s	300 Hz to 2600 Hz ±3 dB
64 kbit/s	300 Hz to 3400 Hz ±3 dB
Audio Digitizing
13 kbit/s	GSM @ 8 kHz sampling
24 kbit/s	OKI ADPCM @ 6 kHz sampling
32 kbit/s	OKI ADPCM @ 8 kHz sampling G.726 @ 8 kHz sampling
48 kbit/s	A-law G.711 PCM @ 6 kHz sampling µ-law G.711 PCM @ 6 kHz sampling
64 kbit/s	A-law G.711 PCM @ 8 kHz sampling µ-law G.711 PCM @ 8 kHz sampling
Digitization selection	Selectable by application on function call-by-call basis
Playback speed control	Pitch controlled Available on OKI ADPCM and G.711 PCM Adjustment range: ±50% Adjustable through application or programmable DTMF control
DTMF Tone Detection
DTMF digits	0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6
Dynamic range	(T-1) –36 dBm0 to –3 dBm0 per tone, configurable by parameter* (E-1) –39 dBm0 to 0 dBm0 per tone, configurable by parameter*
Minimum tone duration	40 ms, can be increased with software configuration
Interdigit timing	Detects like digits with a >40 ms interdigit delay Detects different digits with a 0 ms interdigit delay
Acceptable twist and frequency variation	(T-1) Meets Telcordia LSSGR Sec 6 and EIA 464 requirements (E-1) Meets appropriate ITU-T specifications*
Noise tolerance	Meets Telcordia LSSGR Sec 6 and EIA 464 requirements for Gaussian, impulse, and power line noise tolerance
Cut-through	(T-1) Local echo cancellation permits 100% detection with a >4.5 dB return loss line (E-1) Digital trunks use separate transmit and receive paths to network Performance dependent on far-end handset’s match to local analog loop
Talk-off	Detects less than 20 digits while monitoring Telcordia TR-TSY-000763 standard speech tapes (LSSGR requirements specify detecting no more than 470 total digits) Detects 0 digits while monitoring MITEL speech tape #CM 7291
Global Tone Detection
Tone type	Programmable for single or dual
Maximum number of tones	Application-dependent
Frequency range	Programmable within 300 Hz to 3500 Hz
Maximum frequency deviation	Programmable in 5 Hz increments
Frequency resolution	±5 Hz. Separation of dual frequency tones is limited to 62.5 Hz at a signal-to-noise ratio of 20 dB
Timing	Programmable cadence qualifier, in 10 ms increments
Dynamic range	(T-1) Programmable, default set at –36 dBm0 to –0 dBm0 (single tone), –3 dBm0 (dual tone) (E-1) Programmable, default set at –39 dBm0 to +0 dBm0 per tone
Global Tone Generation
Tone type	Generate single or dual tones
Frequency range	Programmable within 200 Hz to 4000 Hz
Frequency resolution	1 Hz
Duration	10 ms increments
Amplitude	(T-1) –43 dBm0 to –3 dBm0 per tone nominal, programmable (E-1) –40 dBm0 to +0 dBm0 per tone nominal, programmable
MF Signaling (T-1)	R1
MF digits	0 to 9, KP, ST, ST1, ST2, ST3 per Telcordia LSSGR Sec 6, TR-NWT-000506 and ITU-T Q.321
Transmit level	Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Signaling mechanism	Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Dynamic range for detection	–25 dBm0 to –3 dBm0 per tone
Acceptable twist	6 dB
Acceptable frequency variation	Less than ±1 Hz
MF Signaling (E-1)	R2
MF digits	All 15 forward and backward signal tones per ITU-T Q.441
Transmit level	–8 dBm0 per tone, nominal, per ITU-T Q.454; programmable
Signaling mechanism	Supports the R2 compelled signaling cycle and non-compelled pulse requirements per ITU-T Q.457 and Q.442
Dynamic range for detection	–35 dBm0 to –5 dBm0 per tone
Acceptable twist	6 dB
Acceptable frequency variation	Less than ±1 Hz
Call Progress Analysis
Call Progress Analysis	Busy tone detection Ring back tone detection Positive voice detection Positive answering machine detection Fax/modem detection Intercept detection Dial tone detection before dialing
Tone Dialing
DTMF digits	0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6, TR-NWT-000506
Frequency variation	Less than ±1 Hz
Rate	10 digits/s, configurable by parameter*
Level	–7.5 dBm0 per tone, nominal, configurable by parameter*
Pulse Dialing
10 digits	0 to 9
Pulsing rate	10 pulses/s, nominal, configurable by parameter*
Break ratio	60% nominal, configurable by parameter*
Analog Display Services Interface (ADSI)
Analog Display Services Interface (ADSI)	FSK generation per Telcordia TR-NWT-000030 CAS tone generation and DTMF detection per Telcordia TR-NWT-001273

*Configurable to meet country-specific PTT requirements. Actual specification may vary from country to country for approved products.
